DC & LOW FREQUENCY

ประเภทเครื่องมือและขอบข่ายที่เราให้บริการ                             Contact     Scope



Properties of Measured Range Accredited 17025 By Calibration Services
 ANAB   (U.S.A.)    TISI     (Thai) In Lab On-Site
  Measurement Calibration
  DC Volt Meters / Panel Meters   DC Voltage : 0 mV to 1020 V
  AC Volt Meters / Panel Meters   AC Voltage : 1 mV to 1020 V
  DC Current Meters / Panel Meters                      ( 10 Hz to 500 kHz )
  AC Current Meters / Panel Meters   DC Current : 0 mA to 20.5
  DC Volt/Current Meters   AC Current : 29 mA to 20.5 A
  AC Volt/Current Meters                      ( 10 Hz to 30 kHz )
  Digital Panel Meters   Resistance : 0 Ω to 1100 MΩ
  Circuit Testers / Analog Testers ( Panel )   Capacitance : 0.22 nF to 110 mF
  Electrometers / Pico Ammeters ( Panel )   Frequency : 0.01 Hz to < 2 MHz
  Curr. Calibrator for W. Testers
  Digital Multimeters ( up to 7 Digits )
  Digital Multimeters ( 8.5 Digits )
  ( Equivalent to 3458A )
  AC/DC Clamp Meters ( Clamp Only )   DC Current : 20.5 A to 1025 A
  AC/DC Clamp Meters ( with iFlex )   AC Current : 20.5 A to 1025 A
  AC/DC Clamp Meters                       ( 45 Hz to 100 Hz )
  X-Y Recorders
  Data Loggers
  ( Volt, Current, Resistance and Temperature )
  Data Acquisition ( 1 Module )
  Oscillographic Recorders
  Beamcorders / Photocorders
  Industrial Recorders
  Capacitance Meters ( Low Accuracy )
  Capacitance Meters ( High Accuracy )
  Impedance Meters / Vector Impedance Meters   Capacitance :
  Impedance Analyzers     • 1 pF to 1 F
  Impedance Gain / Phase Analyzers        (100 Hz to 100 kHz)
  Impedance Deviation Meters / Comparators   Inductance :
  Crystal Impedance Meters     • 10 nH to 10 H
  Capacitance Bridge        (100 Hz to 100 kHz)
 Inductance Meters   Resistance :
  Inductance Bridge     •  0 Ω to 1100 MΩ
  LCR Deviation Meters / Comparators       (100 Hz to 100 kHz)
  LCR Meters / LCZ Meters
  LCR Meters ( Pocket Type )

   Source Calibration
  AC/DC Volt/Current Generators ( Low Accuracy )   DC Voltage : 0 V to 1000 V
  AC/DC Volt/Current Generators ( High Accuracy )   AC Voltage : 100 nV to1000 V
  Multi-function Process Calibrators                      ( 10 Hz to 1 MHz )
  Multi-Product Calibrators   DC Current : 0 µA to 20 A
  ( Fluke 5500A, 5502A, Wavetek 9000, 9100 )   AC Current : 10 µA to 20 A
  Multi-Product Calibrators with Scope Option                      ( 10 Hz to 5 kHz )
  ( Fluke 5500A, 5502A, Wavetek 9000, 9100 )   Resistance : 0 Ω to 1 GΩ
  Multi-Product Calibrators ( Limit Cal )
  ( Fluke 5520A, 5522A )
  Multi-Product Calibrators with Scope Option
  ( Limit Cal, Fluke 5520A, 5522A )
  Oscilloscope Calibrators ( 1 or 5 Channel )
  Regulated DC Power Supply
  AC Power Supply  ( Limit Cal Volt & Current )
  Current Shunts
  Standard Resistors ( Single Value )
  Decade Resistance Box
  Fixed Value Resistors ( Low accuracy )
  Fixed Value Capacitors ( Low accuracy )
  Standard Capacitor ( Single Value )   Capacitance : 1 pF to 1 F
  Decade Capacitors                      ( 100 Hz to 100 kHz )
  Fixed Value Inductors ( Low accuracy )   Inductance :  10 nH to 10 H
  Standard Inductors (Single Value)                      ( 100 Hz to 100 kHz )
  Decade Inductors

  Electrial Safety Tester
  Withstanding Voltage Testers   DC Voltage : 100 V to 10 kV
  Withstanding Voltage / Insulation Testers   AC Voltage : 100 V to 10 kV
  Electrical Safety Analyzer & Hipot                      ( 50 Hz to 60 Hz )
  RCD (ELCB) Tester   DC Voltage : 100 V to 40 kV
  Dielectrometer   AC Voltage : 100 V to 40 kV
  Impulse Noise Voltmeters                      ( 50 Hz to 60 Hz )
  Electrostatic Discharge Simulators
  Transducers & Volt / Current Transformers
  Pen Recorders (Less than 4 pens)
  Insulation Tester ( Analog Type)   Resistance : 10 kΩ to 10 GΩ
  Insulation Tester ( Digital Type )      Test Voltage : 10 V to 1000 V
  Precision High Resistance Meter
  Super Megaohm Teter ( Portable )

   General Electrical
   Gauss Meter, Tesla Mester ( North and South )    Up  to  10,000 G
   Electrostatic Volt Meters ( Digital / Analog )    -5 kV  to  10 kV
   Charge Plate Monitor

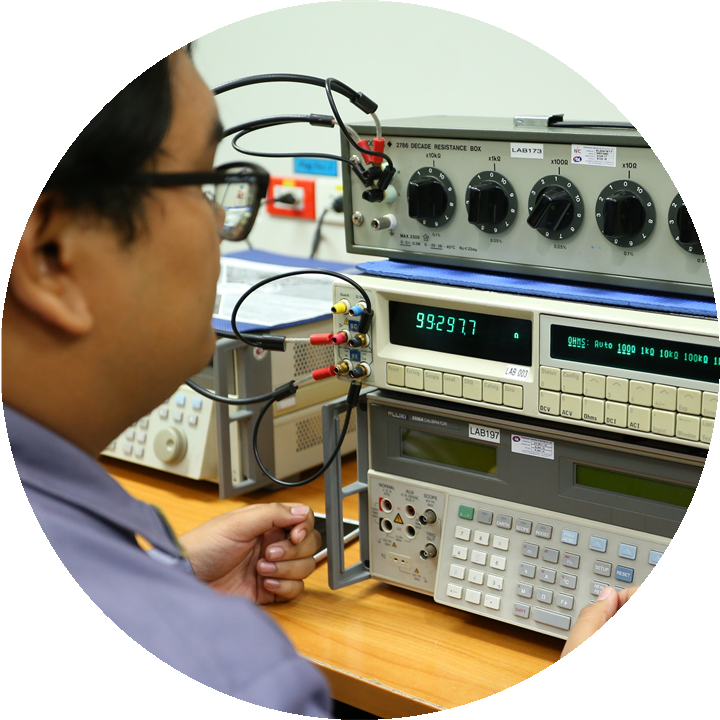

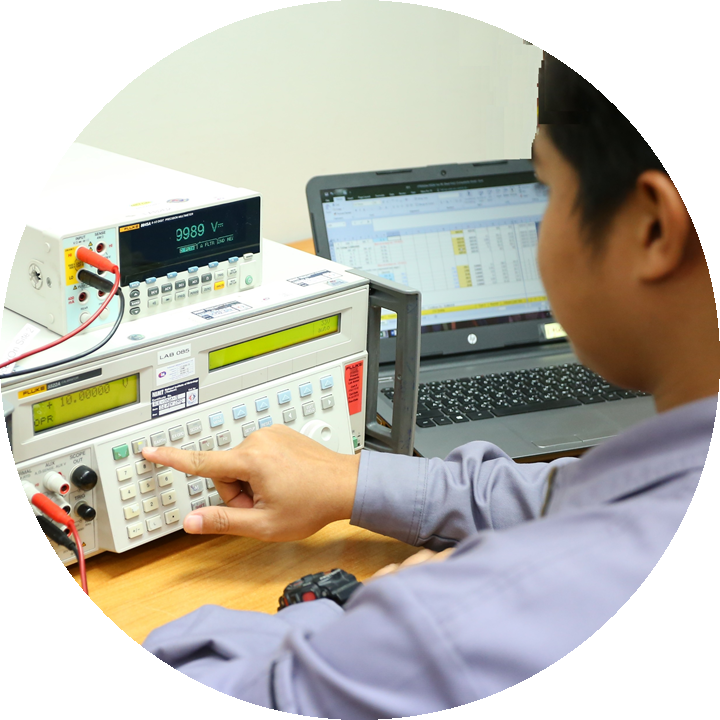

ตัวอย่างเครื่องมือที่ให้บริการ
